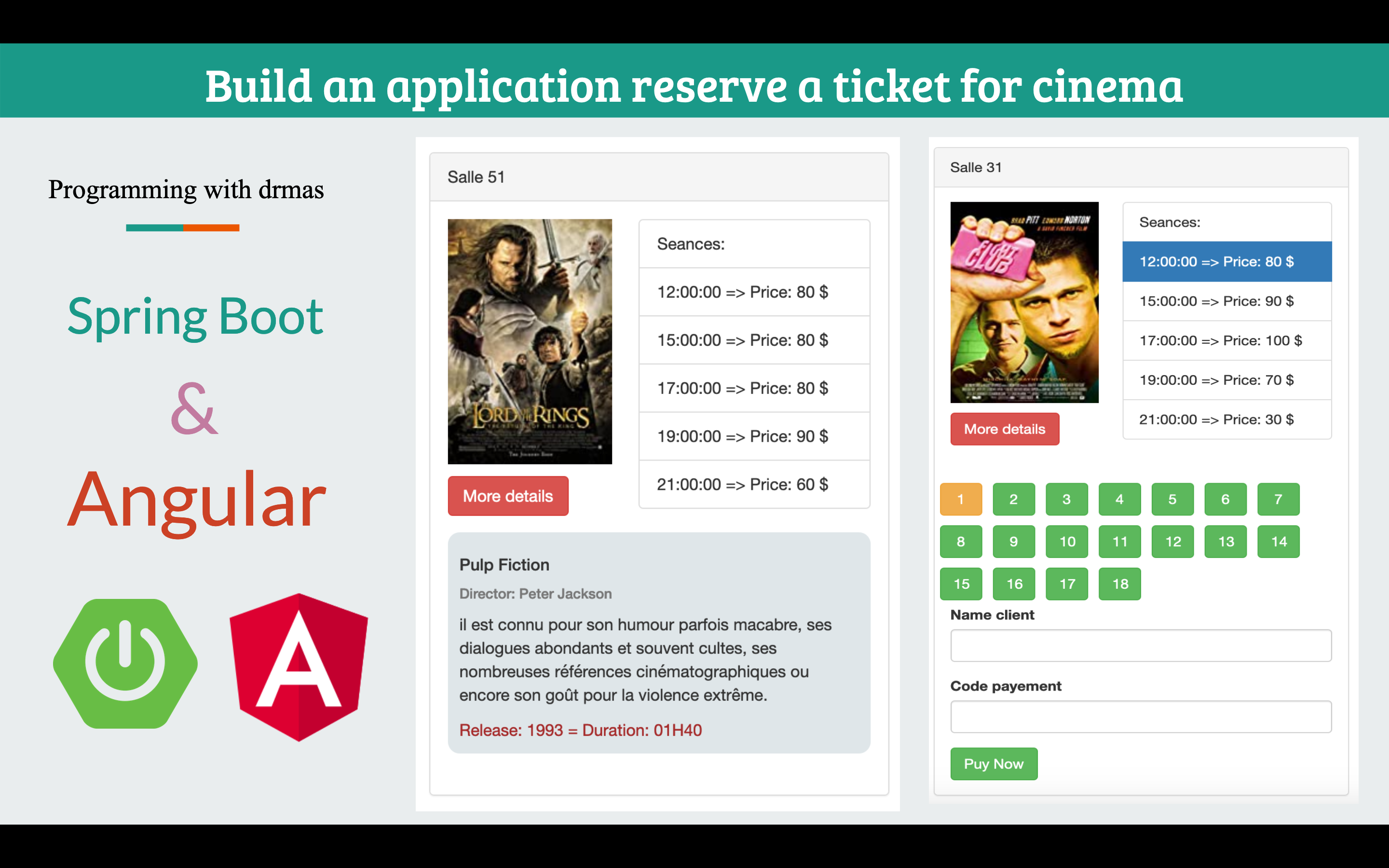

Build an application reserve a ticket for cinema with Spring boot and Angular use Jpa

Objective:

In This tutorial we will build an application reserve a ticket for cinema using Spring boot and Angular. the user can surfing the list of movies by city, cinema and display details time, price and more details as well description, director, realse date and title he can choose his ticket or more tickets.

Used Skills in this project:

Java, SpringBoot, MicroServices, REST WebServices, JPA, Hibernate, MySQL Database, Maven, Angular, GitHub, SpringBoot Embedded Tomcat Server, STS-Eclipse IDE

Tools to be used

° Use any IDE to develop the Spring and Hibernate project. It may be STS/Eclipse/Netbeans. Here, we are using STS (Spring Tool Suite).

° Mysql for the database.

° Use any IDE to develop the Angular project. It may be Visual Studio Code/Sublime. Here, we are using Visual Studio Code.

° Server: Apache Tomcat/JBoss/Glassfish/Weblogic/Websphere.

Spring MVC

Spring MVC is the primary web framework built on the Servlet API. It is build on the popular MVC design pattern. MVC (Model-View-Controller) is a software architecture pattern, which separates application into three areas: model, view, and controller. The model represents a Java object carrying data. The view represents the visualization of the data that the model contains. The controller controls the data flow into model object and updates the view when the data changes. It separates the view and model.

Spring Boot Architecture

Spring Boot is a module of the Spring Framework. It is used to create stand-alone, production-grade Spring Based Applications with minimum efforts. It is developed on top of the core Spring Framework.

Introduction mysql to database

MySQL is a database management system that allows you to manage relational databases. It is open source software backed by Oracle. It means you can use MySQL without paying a dime. Also, if you want, you can change its source code to suit your needs. MySQL can run on various platforms UNIX, Linux, Windows, etc. You can install it on a server or even in a desktop. Besides, MySQL is reliable, scalable, and fast.

Introduction to the POM

POM A Project Object Model or POM is the fundamental unit of work in Maven. It is an XML file that contains information about the project and configuration details used by Maven to build the project. It contains default values for most projects. Examples for this is the build directory, which is target; the source directory, which is src/main/java; the test source directory, which is src/main/java; and so on. When executing a task or goal, Maven looks for the POM in the current directory. It reads the POM, gets the needed configuration information, then executes the goal.

pom.xml




 <?xml version="1.0" encoding="UTF-8"?>
 <project xmlns="http://maven.apache.org/POM/4.0.0"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0>/modelVersion>
   <parent>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-parent</artifactId>
	<version>2.4.1</version>
	<relativePath/>
  </parent>

    <groupId>org.issamdrmas</groupId>
	<artifactId>cinema</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>cinema</name>
	<description>Demo project for Spring Boot</description>

    <properties>
	 <java.version>1.8</java.version>
    </properties>

    <dependencies>

    <dependency>
     <groupId>org.junit.vintage</groupId>
     <artifactId>junit-vintage-engine</artifactId>
    </dependency>

     <dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-data-jpa</artifactId>
   </dependency>

      <dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-web</artifactId>
   </dependency>

      <dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
   </dependency>

     <dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
   </dependency>

   <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <scope>runtime</scope>
    </dependency>

  </dependencies>

  <build>
    <plugins>
	 <plugin>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-maven-plugin</artifactId>
	 </plugin>
	</plugins>
 </build>

 </project>

Properties File

Properties files are used to keep ‘N’ number of properties in a single file to run the application in a different environment. In Spring Boot, properties are kept in the application.properties file under the classpath.

The application.properties file is located in the src/main/resources directory. The code for sample application.properties

We need to create database name it cinema

src/main/resources/application.properties



spring.datasource.url=jdbc:mysql://localhost:3306/cinema?useUnicode=true&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC
spring.datasource.username=root
spring.activemq.password=
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.MySQL5Dialect
spring.jpa.hibernate.ddl-auto=create-drop
server.port=8080

Class Diagram

Modals / Entities

An entity is a lightweight persistence domain object. Typically, an entity represents a table in a relational database, and each entity instance corresponds to a row in that table. The primary programming artifact of an entity is the entity class, although entities can use helper classes.

We need to create neuf entities

- Category

- Cinema

- City

- Film

- Place

- Projection

- Salle

- Seance

- Ticket

Here, we are creating an Entity

Category.java This object content id, name, and relational @OneToMany with Film

src/main/java/org/issamdrmas/entities/Category.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.OneToMany;

import com.fasterxml.jackson.annotation.JsonIgnore;

@Entity
public class Category implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private String name;

 @Column(length = 75)
 @OneToMany(mappedBy = "category")
 @JsonIgnore
 private Collection<Film> films;

 public Category() {
  super();
 }

 public Category(String name, Collection<Film> films) {
    super();
    this.name = name;
    this.films = films;
 }

 public Long getId() {
    return id;
 }

public void setId(Long id) {
    this.id = id;
 }

 public String getName() {
    return name;
 }

 public void setName(String name) {
    this.name = name;
 }

 public Collection<Film> getFilms() {
    return films;
 }

 public void setFilms(Collection<Film> films) {
    this.films = films;
 }

}

Here, we are creating an Entity

Cinema.java This object content id, name, nombreSalles and relational @OneToMany with Sale

src/main/java/org/issamdrmas/entities/Cinema.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToOne;
import javax.persistence.OneToMany;

@Entity
public class Cinema implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private String name;

 private int nombreSalles;

 @OneToMany(mappedBy = "cinema")
 private Collection<Salle> salles;

 @ManyToOne
 private City city;

 public Cinema() {
  super();
 }

 public Cinema(String name, int nombreSalles, Collection<Salle> salles, City city) {
   super();
   this.name = name;
   this.nombreSalles = nombreSalles;
   this.salles = salles;
   this.city = city;
 }

 public Long getId() {
   return id;
 }

 public void setId(Long id) {
   this.id = id;
 }

 public String getName() {
   return name;
 }

 public void setName(String name) {
   this.name = name;
 }

 public int getNombreSalles() {
   return nombreSalles;
 }

 public void setNombreSalles(int nombreSalles) {
   this.nombreSalles = nombreSalles;
 }

 public Collection<Salle> getSalles() {
   return salles;
 }

 public void setSalles(Collection<Salle> salles) {
   this.salles = salles;
 }

 public City getCity() {
   return city;
 }

 public voidsetCity(City city) {
   this.city = city;
 }


}

Here, we are creating an Entity

City.java This object content id, name, and relational @OneToMany with Cinema

src/main/java/org/issamdrmas/entities/City.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.OneToMany;

@Entity
public class City implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private String name;

 @OneToMany(mappedBy = "city")
 private Collection<Cinema> cinemas;

 public City() {
  super();
 }

 public City(String name, Collection<Cinema> cinemas) {
   super();
   this.name = name;
   this.cinemas = cinemas;
 }

 public Long getId() {
   return id;
 }

 public void setId(Long id) {
   this.id = id;
 }

 public String getName() {
   return name;
 }

 public void setName(String name) {
   this.name = name;
 }

 public Collection<Cinema> getCinemas() {
   return cinemas;
 }

 public void setCinemas(Collection<Cinema> cinemas) {
   this.cinemas = cinemas;
 }

}

Here, we are creating an Entity

Film.java This object content id, name, description, photo, director, releaseDate, duration and relational @ManyToOne with Category and @OneToMany With Projection

src/main/java/org/issamdrmas/entities/Film.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToOne;
import javax.persistence.OneToMany;
import com.fasterxml.jackson.annotation.JsonIgnore;

@Entity
public class Film implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private String title;

 private String description;

 private String photo;

 private String director;

 private String releaseDate;

 private String duration;

 @OneToMany(mappedBy = "film")
 @JsonIgnore
 private Collection<Projection> projections;

 @ManyToOne
 private Category category;

 public Film() {
  super();
 }

 public Film(String title, String description, String photo, String director, String releaseDate, String duration) {
   super();
   this.title = title;
   this.description = description;
   this.photo = photo;
   this.director = director;
   this.releaseDate = releaseDate;
   this.duration = duration;
 }

 public Film(String title, String description, String photo, String director, String releaseDate, String duration,
			Collection<Projection> projections, Category category) {
   super();
   this.title = title;
   this.description = description;
   this.photo = photo;
   this.director = director;
   this.releaseDate = releaseDate;
   this.duration = duration;
   this.projections = projections;
   this.category = category;
 }

 public Long getId() {
   return id;
 }

 public void setId(Long id) {
   this.id = id;
 }

 public String getTitle() {
   return title;
 }

 public void setTitle(String title) {
   this.title = title;
 }

 public String getDescription() {
   return description;
 }

 public void setDescription(String description) {
   this.description = description;
 }

 public String getPhoto() {
   return photo;
 }

 public void setPhoto(String photo) {
   this.photo = photo;
 }

 public String getDirector() {
   return director;
 }

 public void setDirector(String director) {
   this.director = director;
 }

 public String getReleaseDate() {
   return releaseDate;
 }

 public void setReleaseDate(String releaseDate) {
   this.releaseDate = releaseDate;
 }

 public String getDuration() {
   return duration;
 }

 public void setDuration(String duration) {
   this.duration = duration;
 }

 public Collection<Projection> getProjections() {
   return projections;
 }

 public void setProjections(Collection<Projection> projections) {
   this.projections = projections;
 }

 public Category getCategory() {
   return category;
 }

 public void setCategory(Category category) {
   this.category = category;
 }

}

Here, we are creating an Entity

Place.java This object content id, number, and relational @ManyToOne with Ticket and @OneToMany With Ticket

src/main/java/org/issamdrmas/entities/Place.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToOne;
import javax.persistence.OneToMany;
import com.fasterxml.jackson.annotation.JsonProperty;
import com.fasterxml.jackson.annotation.JsonProperty.Access;

@Entity
public class Place implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private int number;

 @ManyToOne
 private Salle salle;

 @OneToMany(mappedBy = "place")
 @JsonProperty(access = Access.WRITE_ONLY)
 private Collection<Ticket> tickets;

 public Place() {
  super();
 }

 public Place(int number, Salle salle, Collection<Ticket> tickets) {
   super();
   this.number = number;
   this.salle = salle;
   this.tickets = tickets;
 }

 public Long getId() {
   return id;
 }

 public void setId(Long id) {
   this.id = id;
 }

 public int getNumber() {
   return number;
 }

 public void setNumber(int number) {
   this.number = number;
 }

 public Salle getSalle() {
   return salle;
 }

 public void setSalle(Salle salle) {
   this.salle = salle;
 }

 public Collection<Ticket> getTickets() {
   return tickets;
 }

 public void setTickets(Collection<Ticket> tickets) {
   this.tickets = tickets;
 }

}

Here, we are creating an Entity

Projection.java This object content id, name, dateProjection, price, and relational @ManyToOne with Salle, Film, Ticket and @ManyToOne Seance

src/main/java/org/issamdrmas/entities/Projection.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import java.util.Date;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToOne;
import javax.persistence.OneToMany;
import com.fasterxml.jackson.annotation.JsonProperty;
import com.fasterxml.jackson.annotation.JsonProperty.Access;

@Entity
public class Projection implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private Date dateProjection;

 private double price;

 @ManyToOne
 @JsonProperty(access=Access.WRITE_ONLY)
 private Salle salle;

 @ManyToOne
 private Film film;

 @OneToMany(mappedBy = "projection")
 @JsonProperty(access=Access.WRITE_ONLY)
 private Collection<Ticket> tickets;

 @ManyToOne
 private Seance seance;

 public Projection() {
  super();
 }

 public Projection(Date dateProjection, double price, Salle salle, Film film, Collection<Ticket> tickets, Seance seance) {
   super();
   this.dateProjection = dateProjection;
   this.price = price;
   this.salle = salle;
   this.film = film;
   this.tickets = tickets;
   this.seance = seance;
 }

 public Long getId() {
   return id;
 }

 public void setId(Long id) {
   this.id = id;
 }

 public Date getDateProjection() {
   return dateProjection;
 }

 public void setDateProjection(Date dateProjection) {
   this.dateProjection = ateProjection;
 }

 public double getPrice() {
   return price;
 }

 public void setPrice(double price) {
   this.price = price;
 }

 public Salle getSalle() {
   return salle;
 }

 public void setSalle(Salle salle) {
   this.salle = salle;
 }

 public Film getFilm() {
   return film;
 }

 public void setFilm(Film film) {
   this.film = film;
 }

 public Collection<Ticket> getTickets() {
   return tickets;
 }

 public void setTickets(Collection<Ticket> tickets) {
   this.tickets = tickets;
 }

 public Seance getSeance() {
   return seance;
 }

 public void setSeance(Seance seance) {
   this.seance = seance;
 }

}

Here, we are creating an Entity

Salle.java This object content id, name, placeNumber and relational @ManyToOne with Cinema and @OneToMany with Place and Projection

src/main/java/org/issamdrmas/entities/Salle.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToOne;
import javax.persistence.OneToMany;
import com.fasterxml.jackson.annotation.JsonProperty;
import com.fasterxml.jackson.annotation.JsonProperty.Access;

@Entity
public class Salle implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private String name;

 private int placeNumber;

 @ManyToOne
 @JsonProperty(access = Access.WRITE_ONLY)
 private Cinema cinema;

 @OneToMany(mappedBy = "salle")
 @JsonProperty(access = Access.WRITE_ONLY)
 private Collection<Place> places;

 @JsonProperty(access = Access.WRITE_ONLY)
 @OneToMany(mappedBy = "salle")
 private Collection<Projection> projections;

 public Salle() {
  super();
 }

 public Salle(String name, int placeNumber, Cinema cinema, Collection<Place> places,
			Collection<Projection> projections) {
   super();
   this.name = name;
   this.placeNumber = placeNumber;
   this.cinema = cinema;
   this.places = places;
   this.projections = projections;
 }

 public Long getId() {
   return id;
 }

 public void setId(Long id) {
   this.id = id;
 }

 public String getName() {
   return name;
 }

 public void setName(String name) {
   this.name = name;
 }

 public int getPlaceNumber() {
   return placeNumber;
 }

 public void setPlaceNumber(int placeNumber) {
   this.placeNumber = placeNumber;
 }

 public Cinema getCinema() {
   return cinema;
 }

 public void setCinema(Cinema cinema) {
   this.cinema = cinema;
 }

 public Collection<Place> getPlaces() {
   return places;
 }

 public void setPlaces(Collection<Place> places) {
   this.places = places;
 }

 public Collection<Projection> getProjections() {
   return projections;
 }

 public void setProjections(Collection<Projection> projections) {
   this.projections = projections;
 }

}

Here, we are creating an Entity

Seance.java This object content id, startTime and relational @OneToMany with Projection

src/main/java/org/issamdrmas/entities/Seance.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import java.util.Collection;
import java.util.Date;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.OneToMany;
import javax.persistence.Temporal;
import javax.persistence.TemporalType;

@Entity
public class Seance implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 @Temporal(TemporalType.TIME)
 private Date startTime;

 @OneToMany(mappedBy = "seance")
 private Collection<Projection> projections;

 public Category() {
  super();
 }

 public  Seance(Date startTime, Collection<Projection> projections) {
   super();
   this.startTime = startTime;
   this.projections = projections;
 }

 public Long  getId() {
   return id;
 }

 public void setId(Long  id) {
   this.id = id;
 }

 public  Date getStartTime() {
   return startTime;
 }

 public void setStartTime(Date startTime) {
   this.startTime = startTime;
 }

 public  Collection<Projection> getProjections() {
   return projections;
 }

 public void setProjections(Collection<Projection> projections) {
   this.projections = projections;
 }

}

Here, we are creating an Entity

Ticket.java This object content id, name, and relational @ManyToOne with Place and Projection

src/main/java/org/issamdrmas/entities/Ticket.java):




package org.issamdrmas.cinema.entites;

import java.io.Serializable;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToOne;
import com.fasterxml.jackson.annotation.JsonProperty;
import com.fasterxml.jackson.annotation.JsonProperty.Access;

@Entity
public class Ticket implements Serializable {
 private static final long serialVersionUID = 1L;

 @Id
 @GeneratedValue(strategy = GenerationType.IDENTITY)
 private Long id;

 private String nameClient;

 private double price;

 @Column(unique = false, nullable=true)
 private int codePayement;

 private boolean reserve;

 @ManyToOne
 private Place place;

 @ManyToOne
 @JsonProperty(access=Access.WRITE_ONLY)
 private Projection projection;

 public Category() {
  super();
 }

 public Ticket(String nameClient, double price, int codePayement, boolean reserve, Place place,
			Projection projection) {
   super();
   this.nameClient = nameClient;
   this.price = price;
   this.codePayement = codePayement;
   this.reserve = reserve;
   this.place = place;
   this.projection = projection;
 }

 public Long getId() {
   return id;
 }

 public void setId(Long id) {
   this.id = id;
 }

 public String getNameClient() {
   return nameClient;
 }

 public void setNameClient(String nameClient) {
   this.nameClient = nameClient;
 }

 public double getPrice() {
   return price;
 }

 public void setPrice(double price) {
   this.price = price;
 }

 public int getCodePayement() {
   return codePayement;
 }

 public void setCodePayement(int codePayement) {
   this.codePayement = codePayement;
 }

 public boolean isReserve() {
   return reserve;
 }

 public void setReserve(boolean reserve) {
   this.reserve = reserve;
 }

 public Place getPlace() {
   return place;
 }

 public void setPlace(Place place) {
   this.place = place;
 }

 public Projection getProjection() {
   return projection;
 }

 public void setProjection(Projection projection) {
   this.projection = projection;
 }

}

Spring Data JPA Projections

When using Spring Data JPA to implement the persistence layer, the repository typically returns one or more instances of the root class. However, more often than not, we don't need all the properties of the returned objects.

In such cases, it may be desirable to retrieve data as objects of customized types. These types reflect partial views of the root class, containing only properties we care about. This is where projections come in handy.

We need to create these methods

- getId

- getPrice

- getDateProjection

- getSalle

- getFilm

- getSeance

- getTickets

Here, we are creating an interface Projection

Initial Setup The first step is to set up the project and populate the database.

src/main/java/org/issamdrmas/entities/ProjectionProj.java):




package org.issamdrmas.cinema.entites;

import java.util.Collection;
import java.util.Date;
import org.springframework.data.rest.core.config.Projection;

@Projection(name="p1", types= {org.issamdrmas.cinema.entites.Projection.class})
public interface ProjectionProj {
 public long getId();
 public double getPrice();
 public Date getDateProjection();
 public Salle getSalle();
 public Film getFilm();
 public Seance getSeance();
 public Collection<Ticket> getTickets();

}

We need to create these methods

- getId

- getNameClient

- getPrice

- getCodePayement

- getReserve

- getPlace

Here, we are creating an interface TicketProjection

src/main/java/org/issamdrmas/entities/TicketProjection.java):




package org.issamdrmas.cinema.entites;

import org.springframework.data.rest.core.config.Projection;

@Projection(name="ticketsProj", types= {org.issamdrmas.cinema.entites.Ticket.class})
public interface TicketProjection {
  public Long  getId();
  public String getNameClient();
  public double  getPrice();
  public int  getCodePayement();
  public boolean  getReserve();
  public Place getPlace();
}

JPA Repositories

The JPA module of Spring Data contains a custom namespace that allows defining repository beans. It also contains certain features and element attributes that are special to JPA. Generally, the JPA repositories can be set up by using the repositories element, as shown in the following example:

Spring Repositories Spring has supported the concept of a repository for some time now. Repository is one of Spring's core stereotypes and you should plan on using them in your data access layer, regardless of your chosen data access layer API and framework.

We need to create three interfaces dao

- CategoryRepository

- CinemaRepository

- CityRepository

- FilmRepository

- PlaceRepository

- ProjectionRepository

- SalleRepository

- SeanceRepository

- TicketRepository
